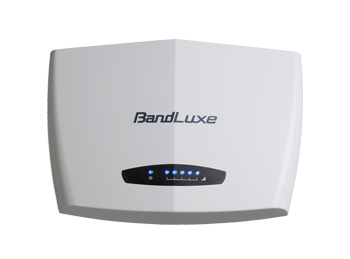

BandLuxe E500 series Outdoor CPE aims to bring superb LTE high-speed quality to your residential and business buildings, when a fixed line is difficult to reach either in urban or rural areas. Embedded with high gain MIMO directional antenna, BandLuxe E500 outdoor CPE can provide coverage enhancement for more than 20-40 dB (antenna gain plus wall penetration and position gain) compared to indoor devices. It is idea cost saving (in an intelligent calculation, the E500 series is much more cost effective in per-bit data delivery) and RF power saving solution for operator to rollout broad info-pipe to rural residential/SOHO and urban business buildings as well.

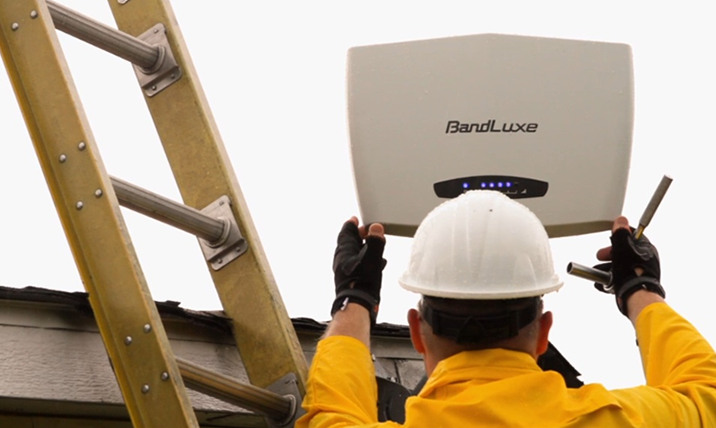

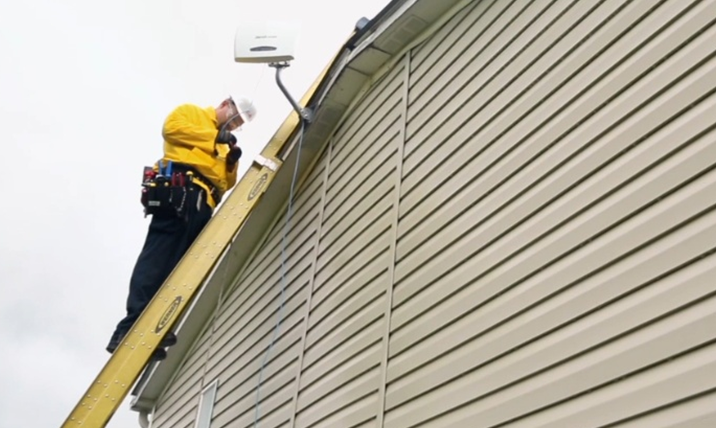

BandLuxe E500 series is equipped with a smartly designed mounting kit for both wall-mount and pole-mount options. It allows easy adjustment of horizontal azimuth and vertical tilt of antenna for the best receiving signal and transmitting path two-way between the BTS and the device. This tunable design has significantly saved the RF power waste in the air and achieved higher spectrum efficiency.

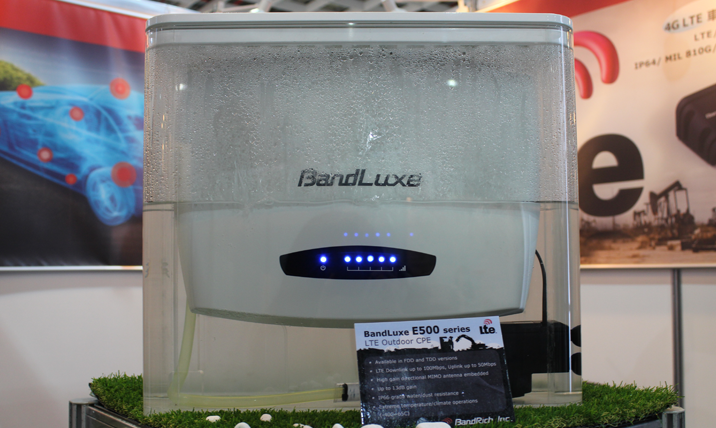

Housed in a ruggedized shelter box, the E500 series is designed to weather both regular and harsh outdoor conditions. It is IP66 grade compliant for dust and water proof; it is ruggedized to pass wind tunnel test up to category 4. The outdoor robust multi-purposed design allows the device to operate well in varying temperatures between -40°C to 65°C (-40°F to 149°F).

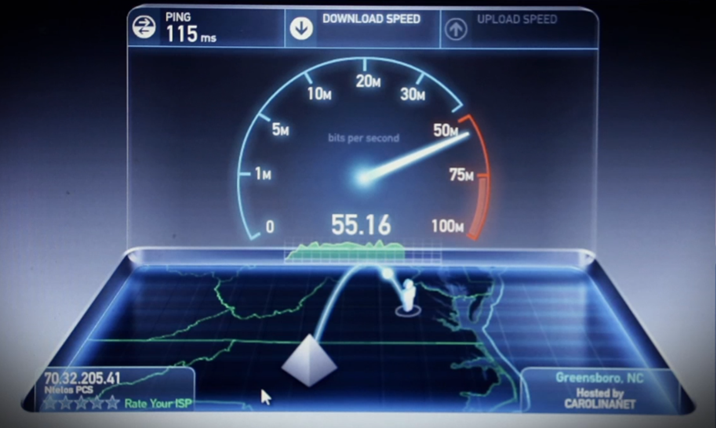

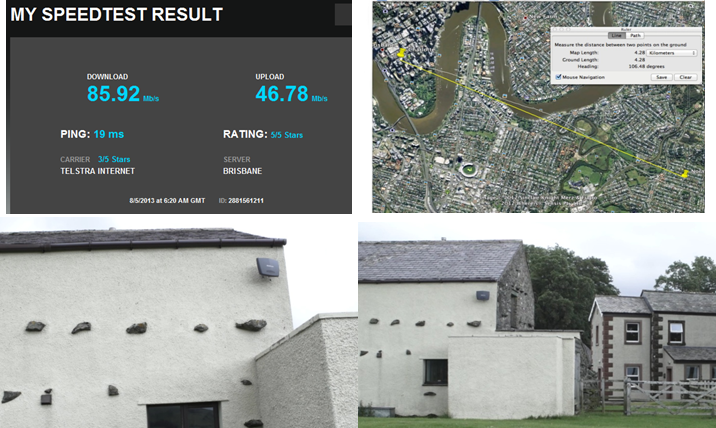

Field Demo and Test Results:

Form Factor

• Dimension: 423.5 x 309.5 x 104 (L x W x H, mm)
• Weight: 3.7 kg

Connectivity and Data Speed

• LTE Band: B1 (2100 MHz), B2 (1900 MHz), B3 (1800 MHz), B4 (AWS), B5 (850 MHz), B7 (2600 MHz), Band 8 (900 MHz), B12 (700 MHz), B13 (700 MHz), Band 14 (700 MHz), B17 (700 MHz), B20 (EDD800 MHz), B25 (1900 MHz), Band 26 (800 MHz), B38 (2500 MHz), B40 (2300 MHz), Band 41 (2500 MHz)-Single band or Multiple band sku combination are open for customization.
• LTE bandwidth: up to 20 MHz
• LTE Data Rate: DL up to 100Mbps, UL up to 50Mbps

Antenna

• Embedded high gain directional MIMO antenna set
• 10-13 dBi antenna gain, subject to frequency band
• Built-in RX two-way diversity
• Downlink 2x2 SU-MIMO

Device Interface

• RJ45 x 1 (PPoE)
• SIM slot x 1
• Reset button: for reset to factory default
• LED indicator

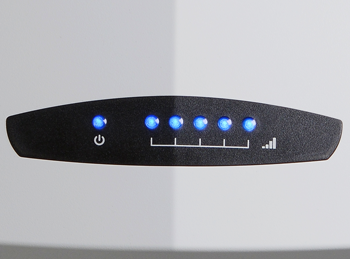

1. Signal strength LED x 5
2. Power indicator LED x 1
3. LED light up timer, 5 min/15 min/30 min(default)/60 min
• Power input: Passive Power Over Ethernet (PPoE)

Router Features

• Multiple VPN pass-through (IPSec, PPTP, L2TP), Firewall Protection (Block Port Scan/Block SYN Flood/Filter Ping from WAN), SPI Firewall
• NAT-NAPT: Single Port Forwarding, Port Range Forwarding, Port Range Triggering, DMZ, UPnP
• DHCP server/client, DHCP reservation
• IPv4, TCP, UDP, ICMPv4, ARP, HTTP/HTTPs

SW Features

• CPE operation mode: Router mode and Bridge mode
• Connection Status: Network name, Signal strength, Roaming indication, Radio technology, Traffic statistics
• Connection Management: Auto Connection, Auto APN matching with USIM, APN database update through browser-based GUI
• Diagnosis: Syslog, Ping test, Traceroute

Environment

• IP66 grade dust and water resistant
• Operation temperature: -40°C to 65°C (-40°F to 149°F)
• Storage temperature: -40°C to 70°C (-40°F to 150°F)
• Operating humidity: 5% to 90% non-condensing
• Storage humidity: 5% to 95% non-condensing

Accessories

• PPoE adapter: RJ-45 x2 (Data x 1, Data & Power out x 1)
• Mounting Bracket
1. Fixture (match to the back design) and screws to mount on pole and wall
2. Left-Right and Up-Down rotatable for best signal source orientation
• RJ-45 connection head water resistant kit (optional)

Conformance

• CE
• FCC
• RoHS
• IP66
